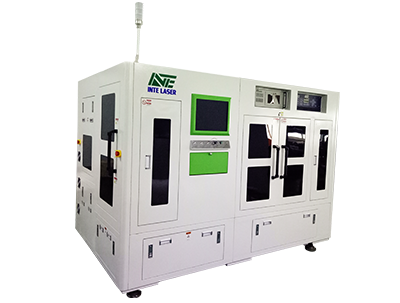

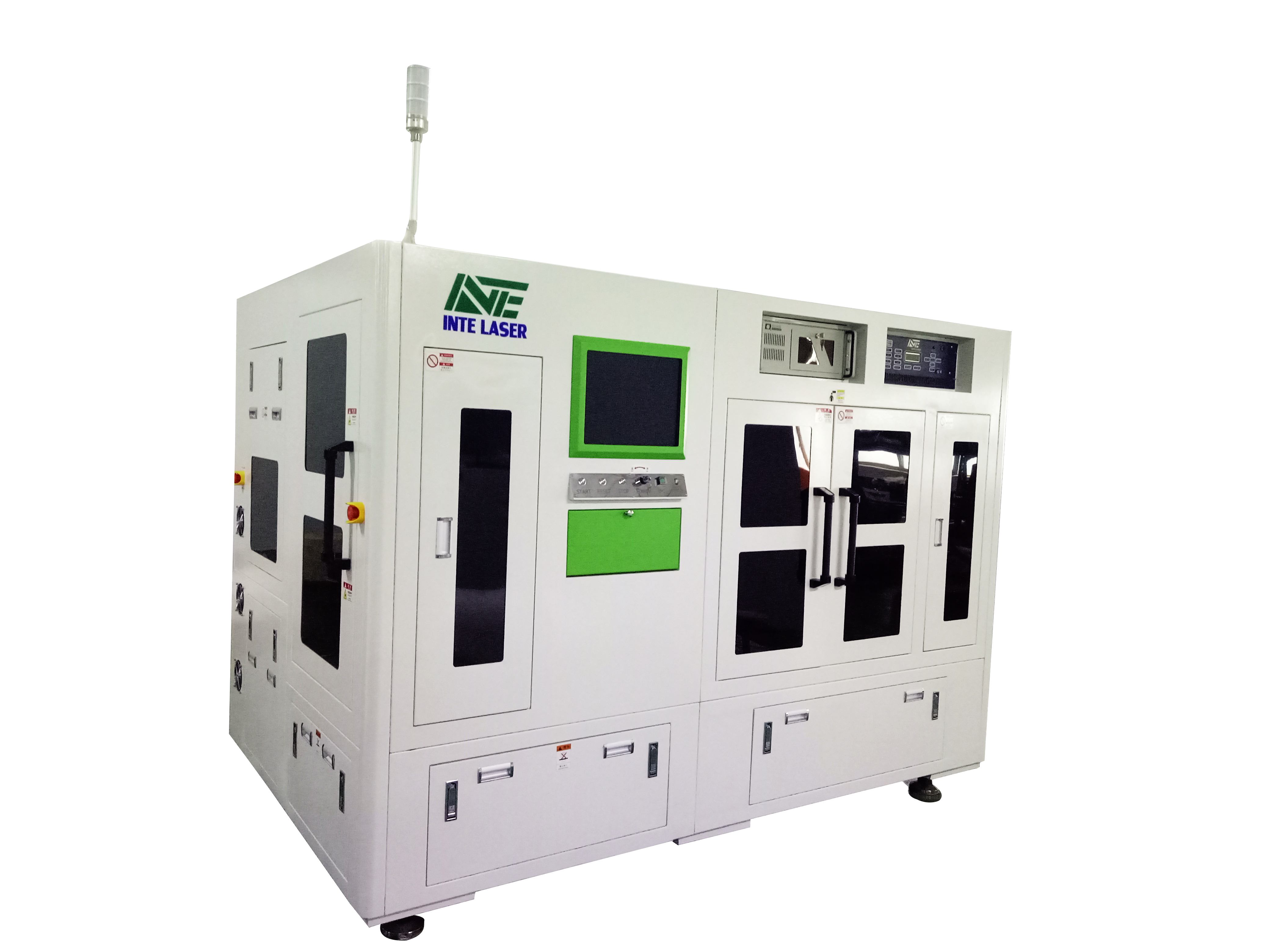

Product name: Camera window cutting equipment

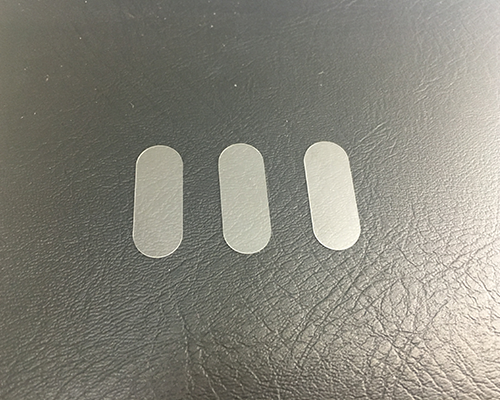

Model introduction:This equipment has the characteristics of strong versatility, environmental protection, no consumables, simple convenient operation, strong compatibility. It can be used for cutting glass/sapphire windows, LCD screens, OLED screens, 3D mobile phone back covers other products.
Processing advantages:
This equipment is equipped with ultra-fast lasers for cutting. Compared with traditional processing methods, the processing effect of the equipment is smaller of edge breakage, the yield/efficiency is higher, the equipment has no consumables, it saves labor.
| technical parameter | |
| Laser wavelength | 1064nm |
| power | 30w-50w |
| Beam quality | <1.3 |
| Laser safety level | Class IV |
| Scan range | 10 0mm*100mm can be customized |
| Galvanometer scanning speed | ＜9000mm/s |
| Precision | ±0.02mm |
| Platform repeat positioning accuracy | ±0.0025mm |
| cooling method | Water cooling |
| Ambient temperature/humidity | 22±2℃/30-60% without condensation |
| Machine power consumption | ＜4.0kw |
| Stand-alone size | 1.8m*1.7m*1.9m |
